ZIPSHADE® 100

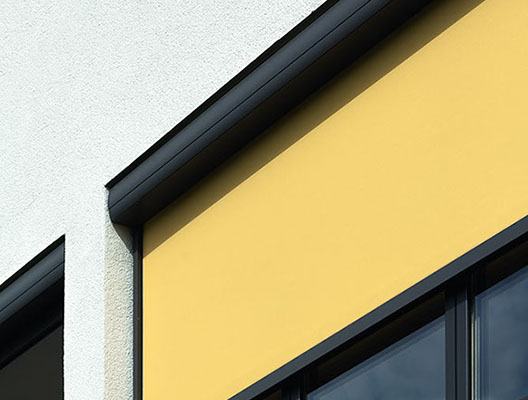

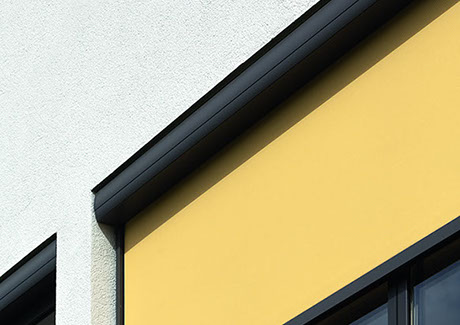

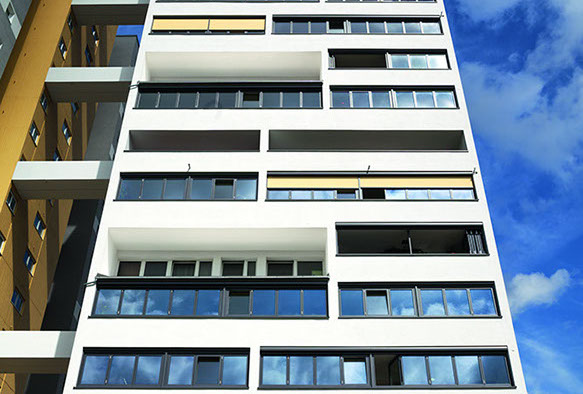

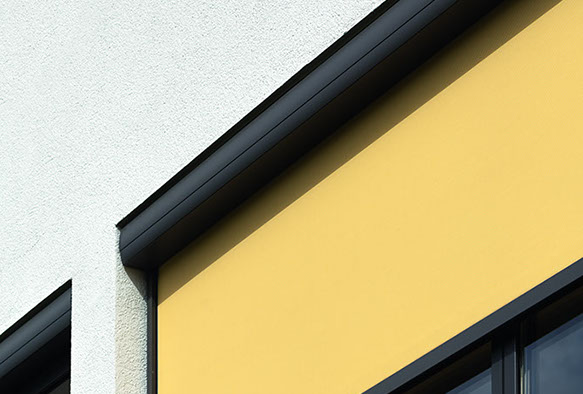

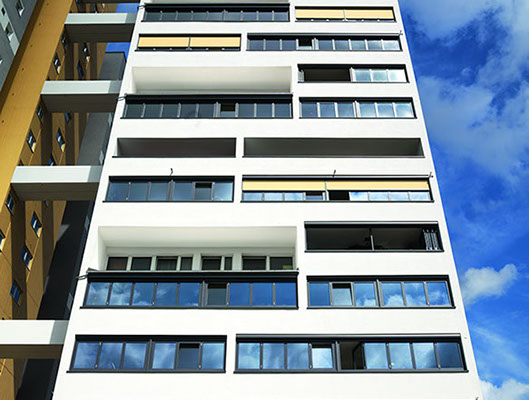

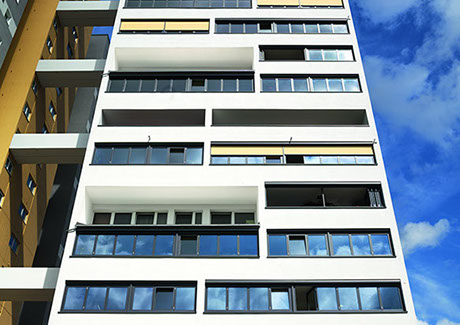

The ZipShade® 100 provides protection from sun, wind and insects, making it a valuable addition to any outdoor space. This system features a slender headbox and low-profile side channel so that it blends seamlessly with exterior design. Choose to operate the motorized ZipShade® 100 with a remote or wall switch. For full automation, sun sensors and wind sensors can also be incorporated.

BROCHURE

CUT SHEETS

DIVISION 12 SPECS

INSTALLATION INSTRUCTIONS

MEASURE INSTRUCTIONS

SPECIFICATIONS

Systems	ZipShade® 100	ZipShade® 100 Slim	ZipShade® 150
GENERAL
Aluminum Colours	Bronze, Black, White, Vanilla *Custom	Bronze, Black, White, Vanilla *Custom	Bronze, Black, White, Vanilla *Custom
DIMENSIONS
Max shade size	157" W x 106" L or 118" W x 137" L	177" W x 98" L or 118" W x 137" L	237" W x 126" L or 126" W x 327" L
Headbox size	3.94" W x 3.94" L	4.33" W x 1.38" L	6.10" W x 5.91" L
Bottom bar size	1.89" W x 1.38" L	1.18" W x 2.09" L	1.89" W x 1.38" L
Side channel size	1.18" W x 2.09" L	4.33" W x 1.38" L	1.18" W x 2.09" L
OPERATION
Motor options	Radio™, 4-Wire™, **Intelligent Shade Network™	Radio™, 4-Wire™, **Intelligent Shade Network™	Radio™, 4-Wire™, **Intelligent Shade Network™
Control options	Sun, wind, and rain sensors; wall switches, remotes	Sun, wind, and rain sensors; wall switches, remotes	Sun, wind, and rain sensors; wall switches, remotes
Automation	Yes	Yes	Yes
INSTALLATION
Recessed installation	No	Yes	No
Inside mount	Yes	Yes	Yes
Outside mount	Yes	Yes	Yes
			**Size Limitations

FEATURES & BENEFITS

Shade Headbox

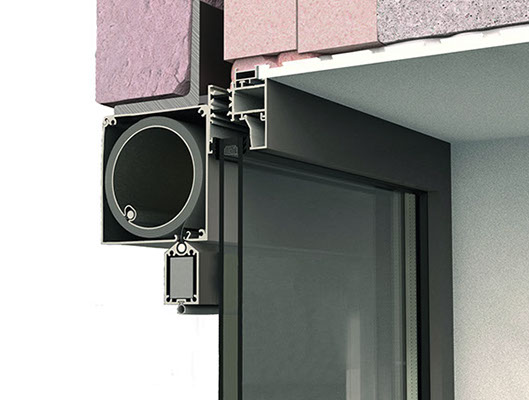

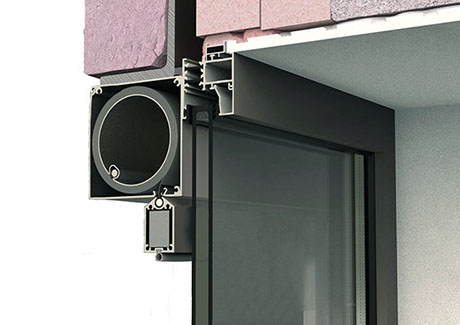

The ZipShade® 100 headbox is constructed of two pieces of extruded aluminum that are hinged together to create an enclosed box. Each end has a console the supports the roller tube.

Fabric Roll

The fabric roller tube is made of steel and has a unique sunken fabric groove to limit the impression of the fabric loop. This strongly reduces the horizontal line indentation in the fabric. The commercial grade construction of the roller tube insures shades will not deflect.

Bottom Bar

The bottom bar, made of extruded aluminum, is solid and is made heavier with a round bar of galvanized steel. For a perfect connection with the sill, the bottom bar has a plastic darkening strip.

Side Channel

The side channel is made of extruded aluminum and houses the co-extruded inner rail that guides the fabric. The side channel also has an extra channel to conceal the cable.

Screen Headbox

Fabric Roll

Bottom Bar

Side Channel
